1. Warranty
This REC1508 enjoys two-year warranty.Any malfunction except of artificial damage can send back
to us to check or repair for free during this method.
2.Features
2.1 General description

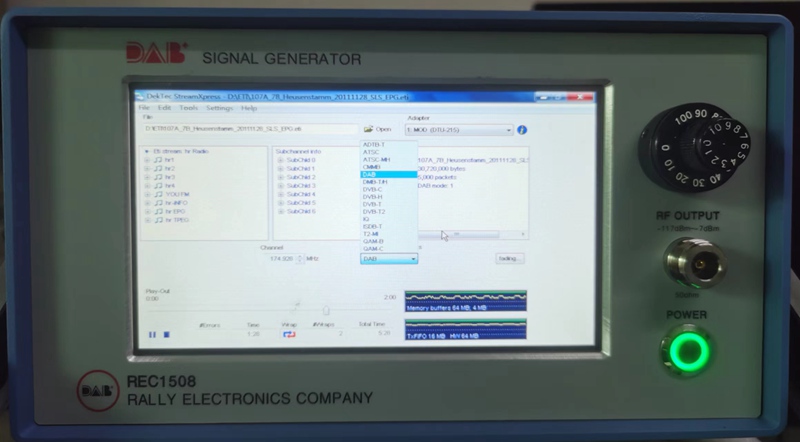

REC1508 bases on DekTec’s DTU-215,which is an USB-2 UHF/VHF modulator.DTU-215 transmits DAB/
DAB+ signal and it is installed in the REC1508.There is an amplifier behind the DTU-215 end,then RF
signal arrives to outside-manual operation-attenuator.All the DTU-215,amplifier and attenuator,etc,are undergoing circuit calculations and accurate signal offset to make sure the set RF LEVEL is precise.
REC1508 runs software named StreamXpress.StreamXpress provides basic transport stream information including:transport stream contents, PID, and file information. It provides start, stop, pause, seamless
looping and much more capabilities.
The StreamXpress software opened automatically when power on.The user just click the PLAY button to make REC1508 works.All the parameters will be saved automatically before power off.The DAB signal is continuous
but never pause when play repeatly.
2.2 General menu
This section describes the general menus at the top of the StreamXpress interface. Following thistable, a more detailed section offers some additional information on the menus.
But,we strongly recommend the user don’t to change any settings at the top of the StreamXpress interface.Because the parameters match the whole circuit and the firmware environment already.Any change cause the RF LEVEL output doesn’t precise anymore presumably.
2.3 Frequency set
When click Channel to set frequency,Keypad popup automatically.Usres can set the frequency value conveniently by a mouse.
3 Specifications
REC1508 is a Digital RF DAB/DAB/T-DMB signal generator complying with Some Digital Pattern Protocol (European DAB Standard ETS 300 401) .
It is useful to certificate of Digital Audio Service and Data Service application of DAB/DAB/T-DMB receivers
by using its own unique DAB/DAB/T-DMB patterns.
key parameters:
l◎Apply to Digital Pattern: more than 60 patterns
l◎About Ensemble : Fully Support Eureka-147 ( ETS 300-401 )
n◎About ETI files :
1KHz_Sine_Wave_0dB_L.eti
1KHz_Sine_Wave_0dB_LR.eti
1KHz_Sine_Wave_0dB_R.eti
10KHz_Sine_Wave_0dB_LR.eti
20Hz_Sine_Wave_0dB_LR.eti
20KHz_Sine_Wave_0dB_LR.eti
100Hz_Sine_Wave_0dB_LR.eti
Many countries such as United Kingdom,Switzerland,Poland,Norway,Germany,France,Czechia,
Australia,Korea,etc
TA
EPG
SLS
DLS
◎LCD Display
◎RF Output
- Frequency range : Band III (174~240MHz)
- Output Level : -110dBm to 0dBm
- Resolution : 1dB
- Accuracy : ±1.5dB
- Impedance : 50Ω
◎Others
lInterface : USB
lPower Requirement : 100 - 240VAC, 50/60Hz, FUSE 1A
lDimension : 185(H) X 310(W) X 390(D)mm
lWeight( Net Weight ): Approx. 7kg ( Except Box, Accessory …)
lStandard Accessories: Power Cable, BNC female head convert to N male head
Connector,Rod antenna,Manual
4 Operating environment
◎Operating Windows System : WIN7,SSD 128GB
◎Environmental Conditions : Indoor Use
Amplitude up to 2,000m
Temperature 0℃ to 45℃
Relative Humidity 50% to 80%
Pollution degree 2
5 Firmware Upgrade
REC1508 installed one low noise Amplifier and one outside-manual operation-attenuator with high-precision.
The model of amplifier is ZFL-1000LN-2B,Mini-Circuits USA.
The model of outside-manual operation-attenuator is 50DR-087N,JFW INDUSTRIES INC USA.
The attenuator is two level adjustable.The bigger one knob is used for 10dB adjustment,we make it as A.The smaller one knob is used for 1dB adjustment,we make it as B.There is an obvious mark point in the middle of the base.The sum of A and B is just the RF OUTPUT LEVEL.This LEVEL value is precise,and it can pass the Certification of the third party.
6 Applications
REC1508 apply to all kinds of DAB-related testing,including R&D,Manufacture,Certification,QA/QC,etc.The industries Including but not limited to:
—Chip
—Module
—Tuner
—Radio(Family,Construction site,Waterproof—Shower&Marine,Vehicles,Internet)
—Laboratory
